Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty

Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty
Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty

Imagem Grande :  Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty

Detalhes do produto:
Lugar de origem: China
Marca: KUOMAN
Número do modelo: Inversor trifásico híbrido ligado à rede
Condições de Pagamento e Envio:
Detalhes da embalagem: Embalagem internacional padrão
Tempo de entrega: 20 dias úteis
Contato

Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty

descrição
Eficiência: 95% - 98% Tensão da saída da bateria: 24VDC 20A
Tipo: Conversores CC/CC Relação atual máxima: 3:1max
Função: Controle de luz + tempo Potência de saída: 3.6kw, 5kw, 8kw, 10kw, 12kw
Potência nominal: 100-125 kW Porta: Porto de Xangai
Grau de proteção: IP65 Carregar: Luz, geladeira, ar condicionado
Faixa de entrada CA.: 110V: 85-138VAC; 220V: 170-275VAC Comunicação: RS485 ou Wi-Fi ou GPRS
Proteção de entrada: IP65

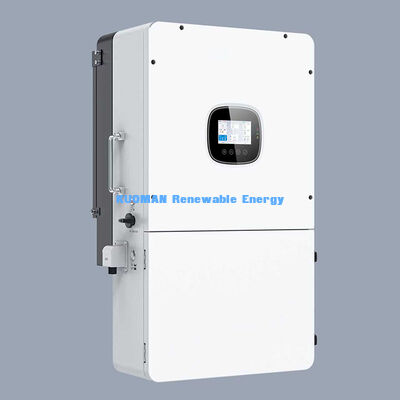

Smart 3 Phase Off-Grid/Grid-Tie Inverter BSR Series, Wi-Fi/4G, 5-Year Warranty

Empower your home or business with the robust and intelligent BSR Series three-phase hybrid inverters. Available in 14kW, 16kW, and 18kW models, these inverters seamlessly integrate solar, grid, and battery storage to provide reliable, efficient, and flexible power management. Featuring a modern white casing with a user-friendly display and easy-grip handles, the BSR series combines advanced technology with practical design.​

Key Features & Specifications:
  • Flexible 3-Phase Power:​ Rated AC output of 14kW, 16kW, or 18kW (208V/120V, 60Hz) with a peak off-grid power up to 36kVA, perfect for residential and commercial three-phase electrical systems.
  • High Solar Input & Efficiency:​ Three independent MPPT trackers (2+2+2 strings) maximize energy harvest. Supports up to 36kW of PV array power with a 600V max input voltage.
  • Robust & Smart Management:​ Built-in Wi-Fi/4G (optional) for remote monitoring. IP65 rated for superior dust and water resistance. Operates in temperatures from -25°C to 60°C. Supports parallel connection of 1 to 9 units for massive power expansion.
​
Ideal Application Scenarios:
  • Residential Homes with 3-Phase Supply:​ Power large homes, HVAC systems, and electric vehicle chargers efficiently.
  • Commercial & Retail Stores:​ Reduce operating costs by powering lighting, refrigeration, and office equipment with solar energy.
  • Small & Medium Enterprises (SMEs) / Workshops:​ Run machinery and production equipment reliably with clean, three-phase power.
  • Agricultural & Farming Operations:​ Power irrigation systems, barns, and processing equipment.
  • Off-Grid & Backup Power Systems:​ Provide critical power backup for buildings during grid outages.
​FAQ
Q1: What battery types are compatible?
A:​ The inverter is compatible with Lead-Acid batteries, Lithium-ion batteries (with self-adaptive BMS communication), and User-Defined battery types within the 40-60V range.

Q2: What is the maximum solar panel capacity I can connect?
A:​ The Max PV Access Power is 2x the rated power (e.g., 28kW for the 14kW model). The Max PV Input Power is 1.6x the rated power (e.g., 22.4kW for the 14kW model). Always consult an installer for optimal configuration.

Q3: Can it work both on-grid and off-grid?
A:​ Yes, it is a hybrid inverter. It can feed power to the grid, power your loads directly from solar/battery, and provide backup power during a grid failure.

Q4: What is the warranty period?
A:​ The standard warranty is 5 years. Please confirm warranty extensions with your supplier.

Q5: Is it suitable for outdoor installation?
A:​ Yes. With an IP65 protection rating, it is fully protected against dust and low-pressure water jets from any direction, making it suitable for outdoor installation.
