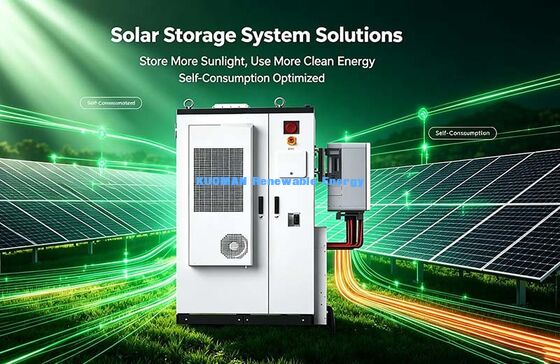

High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet

High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet
High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet

Imagem Grande :  High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet

Detalhes do produto:
Lugar de origem: China
Marca: KUOMAN
Certificação: CE, UL
Número do modelo: KMC50DP2
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1
Preço: based on the specification demands
Detalhes da embalagem: Embalagem padrão de exportação
Termos de pagamento: T/T
Habilidade da fonte: 10 PCs/mês
Contato

High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet

descrição
Dimensões do módulo: 1722x1134x30mm Certificações: IEC 61215, IEC 61730, UL 1703, CE
Vidro frontal: 3,2 mm temperado Temperatura operacional: -40°C a 85°C
Frequência de saída: 60 Hz/50 Hz Corrente de curto-circuito: 13,88-14,22A
Caixa de junção: 25A, IP68 Garantia: 10 anos de garantia do produto, 25 anos de garantia de desempenho
Tratamento de superfície: Revestimento antirreflexo Eficiência do painel: 22%
Classificação dos fusíveis de série: 15A Aplicativo: Residencial, Comercial, Industrial
Atual: 12,5 amperes Contagem de células: 144 monocristalino
Faixa de temperatura: -40°C~+85°C
Destacar:

768V LiFePO4 energy storage system

,

215kWh commercial energy storage

,

air cooling cabinet energy storage

High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet
High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet

Product Features

Versatile PV & Grid Function

  • Supports DC/AC coupled solar systems, max 100kWp PV input with 4 built-in MPPT trackers
  • 10ms seamless on/off-grid switching, no extra switching hardware, direct backup load output
  • Generator input compatible, max 97.5% efficiency, adjustable power factor

Safe & Reliable Outdoor Design

  • 280Ah LFP cells, high energy density, 90% DoD & long cycle life
  • Complete fire safety: CO detection, sound-light alarm, explosion vent, fire water injection port
  • Full multi-layer electrical protection; IP54 battery cabinet + IP65 inverter, C4 anti-corrosion
  • Wide working temperature: -30℃~+50℃ battery, -25℃~60℃ inverter, global safety certifications

Smart Integrated Energy Management

  • Self-developed BMS & EMS for peak shaving, self-consumption & TOU arbitrage
  • 24/7 cloud remote monitoring, Ethernet/CAN/MODBUS TCP/IP communication support

Compact & Easy Installation

  • All-in-one integrated cabinet, small footprint & space-saving
  • Active air conditioner cooling, total weight under 1.5 tons, outdoor ready
  • Stable operation up to 3000m (battery) / 4000m (inverter) altitude
Key Technical Parameters
Battery System (BC107DE2)
  • Chemistry: Lithium Iron Phosphate (LFP) - safe, long cycle life, non-flammable
  • Total Capacity: 107.52 kWh (6 modules * 17.92 kWh)
  • Nominal Voltage: 384 V (operating range: 342-432 V)
  • Max Charge/Discharge Rate: 0.5C
  • Depth of Discharge (DoD): 90%
  • IP Rating: IP54 (outdoor installation)
  • Corrosion Resistance: C4 level (suitable for coastal/industrial environments)
  • Operating Temp: -30°C to +50°C
  • Cooling: Air conditioner (stable performance in extreme climates)
  • Certifications: UN38.3, MSDS, IEC 62040, IEC 62477, IEC 62619, IEC 63056, IEC 61000-6-2/4
Hybrid Inverter (KAC50DP2)
  • PV Input: 100 kWp max, MPPT voltage 250-950 Vdc
  • Battery Compatibility: 200-950 Vdc (rated 250-800 Vdc), 55 kW max DC power
  • AC Output: 50 kW rated (55 kVA max), grid-tied & backup power (50 kW backup)
  • Efficiency: Up to 97.5%
  • IP Rating: IP65 (dust & water resistant)
  • Operating Temp: -25°C to 60°C (derated above 45°C)
  • Cooling: Intelligent air cooling
  • Communication: RS-485/CAN, Modbus TCP/IP
Application Scenarios
Commercial & Industrial Facilities: Factories, warehouses, shopping malls, and office buildings for peak shaving, demand charge management, and backup power.
Solar PV Plants: Utility-scale and distributed solar installations to store excess solar energy for grid stability and time-of-use (TOU) arbitrage.
Microgrids: Remote communities, mining sites, and islands to integrate renewable energy, gensets, and energy storage for reliable off-grid power.
Critical Infrastructure: Hospitals, data centers, and telecom towers to ensure uninterrupted power supply during blackouts.
Agricultural & Rural Applications: Irrigation systems and farm operations to store solar energy for off-peak use and reduce reliance on diesel generators.
High Safety 768V 215kWh LiFePO4 Energy Storage System with Built-In Air Cooling Cabinet
